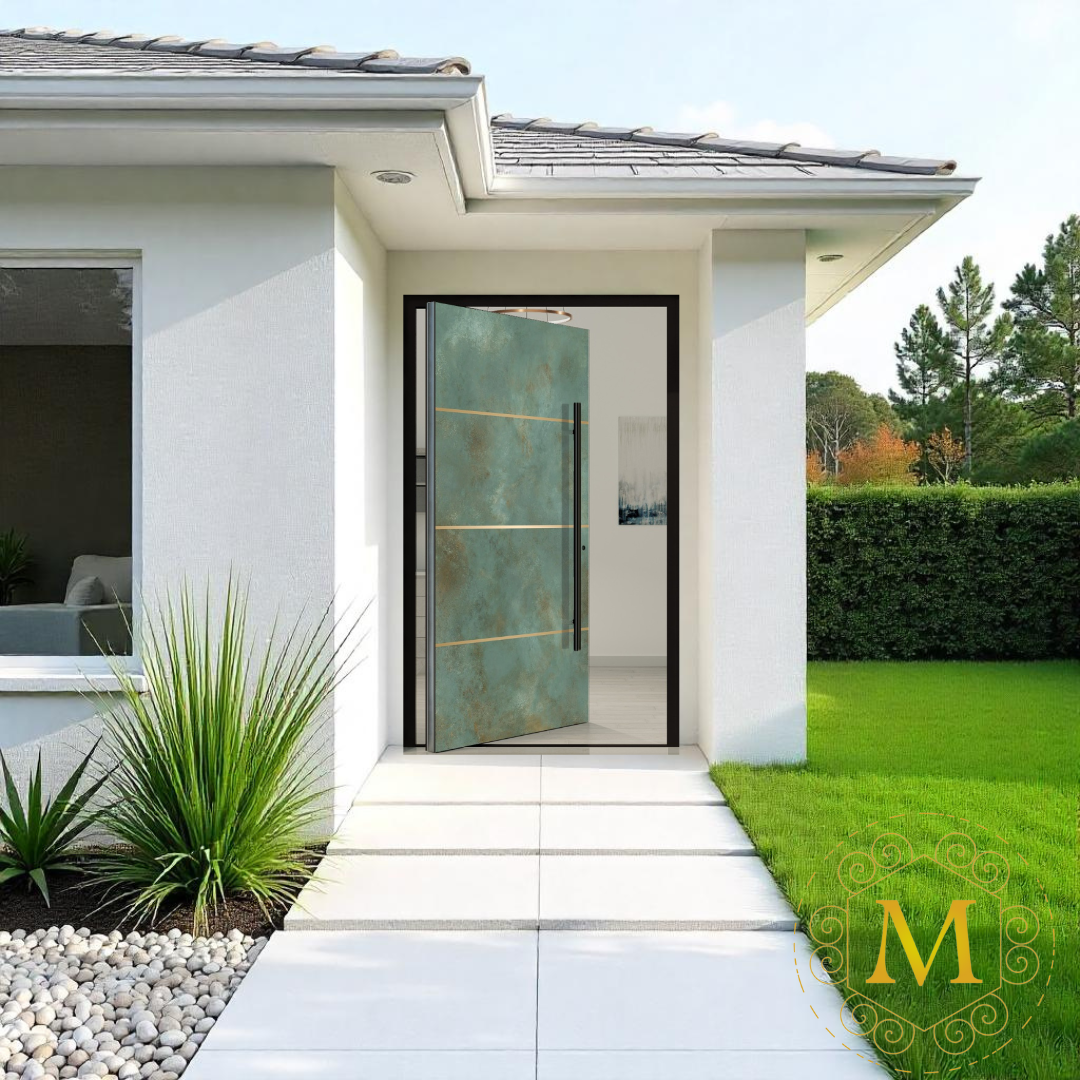

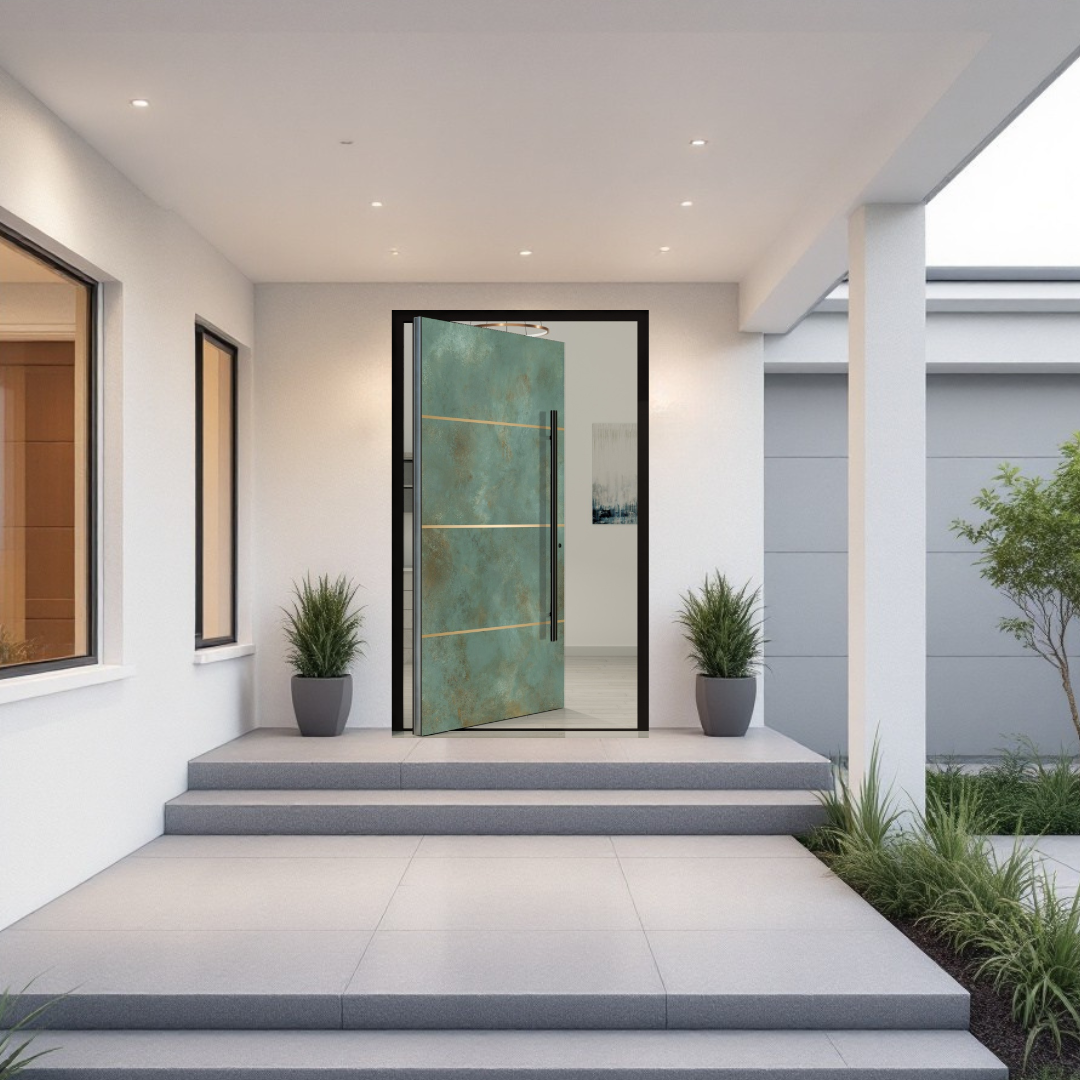

Enhance your space with this aluminum pivot door featuring durable sintered quartz panels. Made from a blend of shale clays, quartz sand, and granite rocks, the sintered quartz offers an industrial yet elegant aesthetic. This door excels in air tightness, water tightness, wind load resistance, and burglar resistance. Complete with a FUHR 833 3-point lock, door handle, and low threshold. Available in sizes from 55.1″ to 63″ wide and 78.7″ to 116″ tall, with a smaller size option available (view LIM V52)
ZEBO
$10,560.00
Production takes 7 weeks
ALUMINIUM COLLECTIONS PIVOT SINGLE PIVOT DOOR with sidelight
Open Configurator
Close
Woods
Colors
Wood color options are available upon request; however, please note that availability may vary depending on the specific model and size. Not all products in our catalog support wood textures due to design or material limitations.
If you are interested in a wood finish, we encourage you to contact us via email with the product name, size, and any preferred color or texture. Our team will be happy to check availability and assist you with customization options.
Your model: ZEBO
y
x
y
x
x
y
x
y
x
x
Select all options in the configurator before adding the door to the cart
FREE SHIPPING!
Upgrade Your Interior with Our Premium Aluminum Pivot Door
ZEBO – Enhance the elegance and functionality of your space with our aluminum pivot door, featuring panels made from sintered quartz. This advanced material is created by blending and pressing shale clays, quartz sand, and granite rocks, then hardening them through a firing process. The result is a unique, industrial, and urban aesthetic that perfectly complements high-end, exclusive interiors, combining durability with sophistication.
Outstanding Performance Features with ZEBO
Not only does the pivot door boast an impressive design, but it also offers exceptional performance across various environmental conditions. Here’s a breakdown of its key features:
-
Air Tightness: Class 4 (600 Pa), ensuring your home stays draft-free.
-
Water Tightness: Class 4A (150 Pa), providing reliable protection against water penetration.
-
Wind Load Resistance: Class C3 (1200 Pa), making the door resilient against harsh winds.
-
Burglar Resistance: RC2/WK2, offering enhanced security against potential break-ins.
-
Thermal Insulation: R-Value of 5.5, maintaining an energy-efficient environment throughout the year.
These features come together to provide an ideal blend of security, comfort, and sustainability.
What’s Included in the Door Set
The pivot door set is thoughtfully designed for ease of installation and enhanced performance. The set includes:
-
A premium aluminum pivot door with sintered quartz panels for a modern, stylish look.
-
A matching door frame for a seamless appearance.
-
A stylish door handle that complements the door’s design.
-
The FUHR 833 3-point locking system for superior security.
-
A low threshold design for easy access, ideal for those seeking both form and function.
With these components, the pivot door delivers both practical performance and timeless design.
Customization Options – ZEBO
This pivot door is available in several standard sizes, with additional custom options to suit your needs. You can select from the following sizes:
-
Width: 55.1″ to 63″
-
Height: 78.7″ to 116″
-
Custom Size Option: Smaller sizes available upon request (see LIM V52 for details).
The door can be tailored to fit perfectly in your home or commercial space, offering both flexibility and style.
PIVOT Doors
Profile Construction
Made entirely from aluminum, PIVOT doors offer a unique and grand entrance with an offset pivot point. The profile is insulated with foam and coated with aluminum, ensuring thermal efficiency, durability, and a striking contemporary appearance ideal for large openings.
Technical Specifications & Set Inclusions
- Production & Delivery: Approximately 6 weeks for production + 1.5 weeks for delivery.
- Warranty: 5-year manufacturer warranty.
- Frame Size: The PIVOT door frame is 3 inches (approx. 76 mm) thick.
- Available Dimensions: PIVOT doors are typically made for custom, often oversized, dimensions to create a statement entrance.
- Locking System: The door set includes a multi-point lock system suitable for large-format doors.
- The door set includes:
- Aluminum door and door frame.
- High-quality door handle.
- Specialized pivot hinge system.
- Multi-point locking system.
- Threshold strip (detailed dimensions and pictures available).
- Standard lock insert with 5 keys.
Glazing
The glass in our doors features triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1.
- Standard Glazing Package: 4th/16Ar/4/16Ar/4th
- Safety Glass: VSG 33.1 // 4 // 4
- P4 Anti-burglary Glass
A wide range of glass options is available, including energy-saving, sound-absorbing, safety, anti-burglary, and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass, as well as bronze reflex glass.
- Light Permeability: Milk (Frosted) Glass: 89%; Mirror Glass: 68%; Graphite Reflex Glass: 42%.
Colours
PIVOT doors are available in a wide selection of colors from the RAL palette, allowing for full customization to complement the architectural vision.
Multipoint locking system Fuhr 835
Automatic multipoint locking system with a deadlocking latch.
Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.
After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.
The most important features:
Increased security – due to automatic locking there is no need for conventional locking with using a key.
Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.
Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.
Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.
Locking the lock:
- After closing the door, the latch in the main lock and additional bolts automatically lock the door.
- A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
- Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.
| Type of door | Double door's, Single door |
|---|
