ALU VOUX

$4,645.00

Production takes 6 weeks

The VOUX door features a multi-point FUHR lock, triple glazing, and superior thermal (R-Value 8.3) and sound insulation (30dB), with an aluminum frame and GreenteQ stainless steel handle, ensuring both security and energy efficiency.

ALU Alu Single Door ALUMINIUM COLLECTIONS SINGLE ALU DOOR with sidelight
Open Configurator

Returning to the model selection will restart the remaining options. Do you want to continue?

Close

MODEL

LAYOUT

OPENING WAY

COLOR

DOOR HEIGHT
WITH  FRAME

DOOR WIDTH
WITH  FRAME

ACCESSORIES

HANDLES

Woods
Colors


Wood color options are available upon request; however, please note that availability may vary depending on the specific model and size. Not all products in our catalog support wood textures due to design or material limitations.
If you are interested in a wood finish, we encourage you to contact us via email with the product name, size, and any preferred color or texture. Our team will be happy to check availability and assist you with customization options.

Your model: ALU VOUX
y
x
handle
y
x
x
y
x
handle
y
x
x

Select all options in the configurator before adding the door to the cart

Product total
Options total
Grand total

FREE SHIPPING!

The VOUX door combines advanced materials and high-end technology for a sleek, secure, and energy-efficient solution. The door features a FUHR multi-point lock with numerous locking and control configurations, ensuring top-notch security. Its triple glazing glass offers excellent thermal insulation with an R-Value of 8.3 and sound insulation of 30dB, creating a quiet and comfortable indoor environment.

The door leaf has 2.7″ of polyurethane foam, further enhancing its insulating properties. The set includes an aluminum door and frame, along with the high-quality GreenteQ door handle made from stainless steel. You can also choose from wing or roller hinges, with concealed hinges as an option, all available in the same color as the door.

The multipoint locking system locks at 7 points, including 2 hooks, 4 bolts, and an upper bolt, while the anti-burglary class lock insert provides added security with 5 keys. The 0.8″ threshold strip ensures a clean and effective seal, completing the package for this premium door system.

ALU Doors

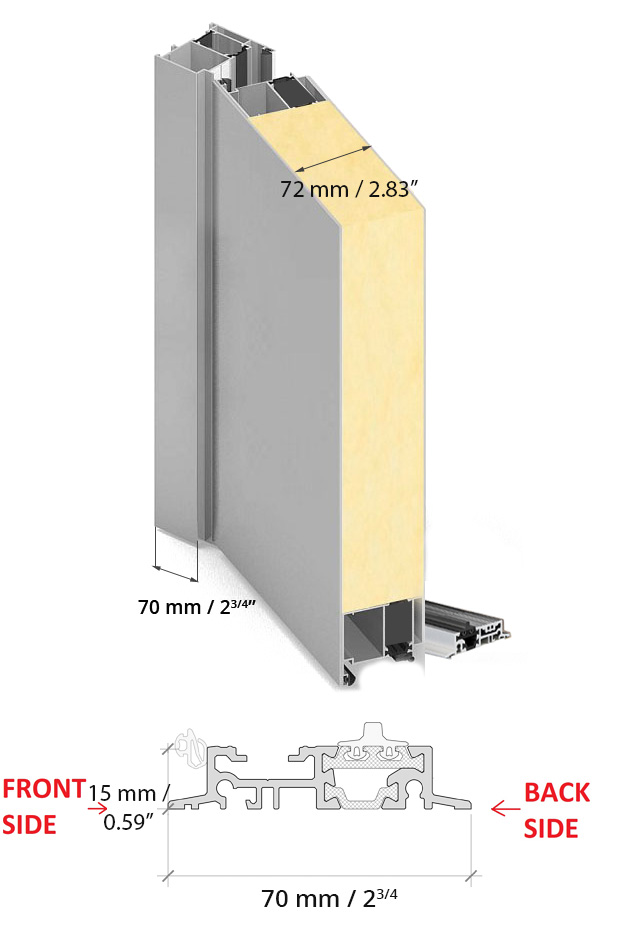

Profile Construction

Made entirely from aluminum, ALU doors are lightweight, corrosion-resistant, and exceptionally durable. The profile is insulated with foam and coated with aluminum, providing excellent thermal performance and a sleek, modern look.

Technical Specifications & Set Inclusions

  • Production & Delivery: Approximately 6 weeks for production + 1.5 weeks for delivery.
  • Warranty: 5-year manufacturer warranty.
  • Frame Size: The aluminum door frame is 2.8 inches (approx. 71 mm) thick.
  • Available Dimensions (Single Door with Frame):
    • Width: from 900mm to 1550mm
    • Height: from 2000mm to 2860mm
  • Locking System: The door set includes a multi-point lock system. A detailed view of the system is available on the manufacturer’s website.
  • The door set includes:
    • Aluminum door and door frame.
    • High-quality door handle.
    • Adjustable hinges.
    • Multi-point locking system.
    • Threshold strip (detailed dimensions and pictures available).
    • Standard lock insert with 5 keys.

Glazing

The glass in our doors features triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1.

  • Standard Glazing Package: 4th/16Ar/4/16Ar/4th
  • Safety Glass: VSG 33.1 // 4 // 4
  • P4 Anti-burglary Glass

A wide range of glass options is available, including energy-saving, sound-absorbing, safety, anti-burglary, and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass, as well as bronze reflex glass.

Light Permeability: Milk (Frosted) Glass: 89%; Mirror Glass: 68%; Graphite Reflex Glass: 42%.

Colours

ALU doors are available in a wide selection of colors from the RAL palette, allowing for perfect customization to match any architectural style.

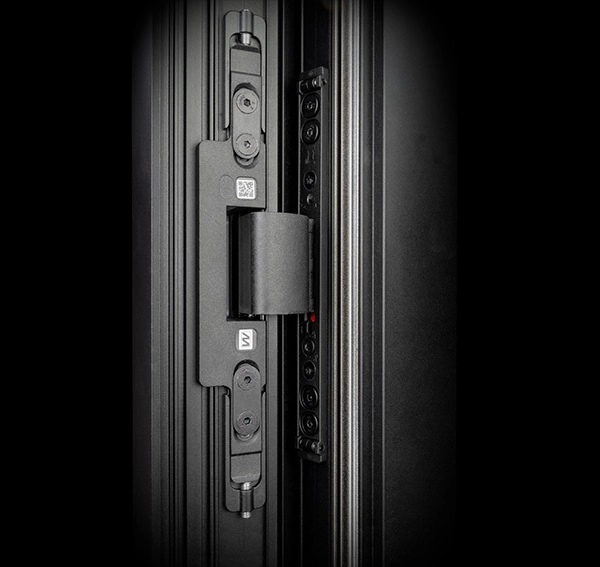

Wala Hidden Hinges

We use Wala hidden hinges that combine high durability, numerous assembly advantages and a discreet, elegant form. Hinges are invisible when the door is closed. The 3D adjustment function provides a convenient way of adjusting the pressure, height and side adjustment (left/right) of the door. Hinges allow for trouble-free installation and removal of the door leaf/slab. Depending on the door height there are at least 3 hinges per door leaf/slab.

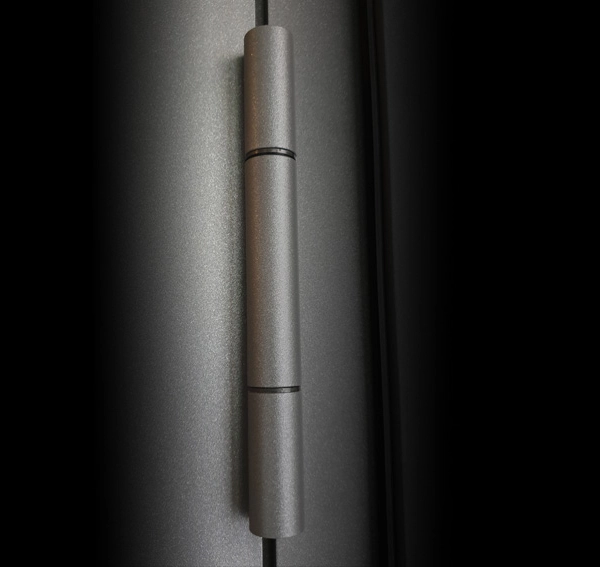

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2″ to 0.2″, gap: -2.5 to 2.5 mm / -0.1″ to 0.1″ , seal pressure: -1.5 to 1.5 mm / -0.05″ to 0.05″ . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.

Wala Hidden Hinges

We use Wala hidden hinges that combine high durability, numerous assembly advantages and a discreet, elegant form. Hinges are invisible when the door is closed. The 3D adjustment function provides a convenient way of adjusting the pressure, height and side adjustment (left/right) of the door. Hinges allow for trouble-free installation and removal of the door leaf/slab. Depending on the door height there are at least 3 hinges per door leaf/slab.

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2″ to 0.2″, gap: -2.5 to 2.5 mm / -0.1″ to 0.1″ , seal pressure: -1.5 to 1.5 mm / -0.05″ to 0.05″ . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.


Opening way:

Left hand – opening to inside, Left hand reverse – opening to outside, Right hand – opening to inside, Right hand reverse – opening to outside
Door height with frame:

80" +$110.00, 82.3", 82" +$112.00, custom height from 70.7" to 82.3" +$110.00
Glazing:

Graphite reflex, Milk frosted glass, Mirror glass, Standard ( transpared – clear glass )
Color:

Black + $110.00, Bleached oak + $110.00, Concrete + $110.00, Corten – architectural rust + $110.00, Dark anthracite RAL 7016, Double color ( doors in different colors inside and outside ), Golden oak, Light anthracite ( silver grey ) RAL 7040, Mahogany, Smooth anthracite RAL 7015, Turners oak, Walnut, Wenge, White, Winchester
Rain deflector:

No, Yes + $40.00
T-bar - long vertical handle or normal handle:

Only a normal door handle black + $70.00, Only a normal door handle silver, Yes, T-bar Straight, circular shape 47.2" black + $320.00, Yes, T-bar Straight, circular shape 47.2" silver + $270.00, Yes, T-bar Straight, rectangular shape 63" black + $320..00, Yes, T-bar Straight, rectangular shape 63" silver + $280.00
The color of the frame around the glass:

Black, Silver
