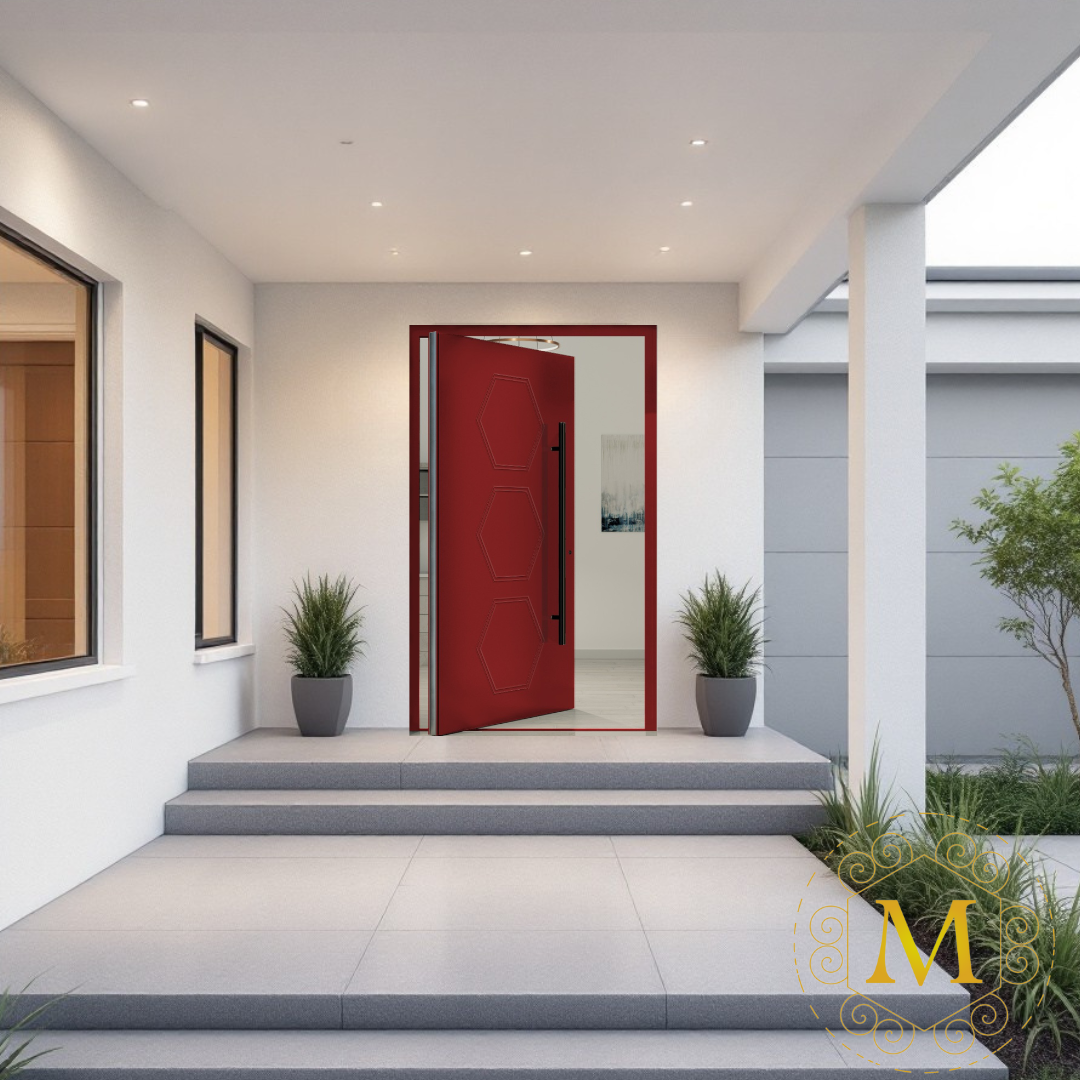

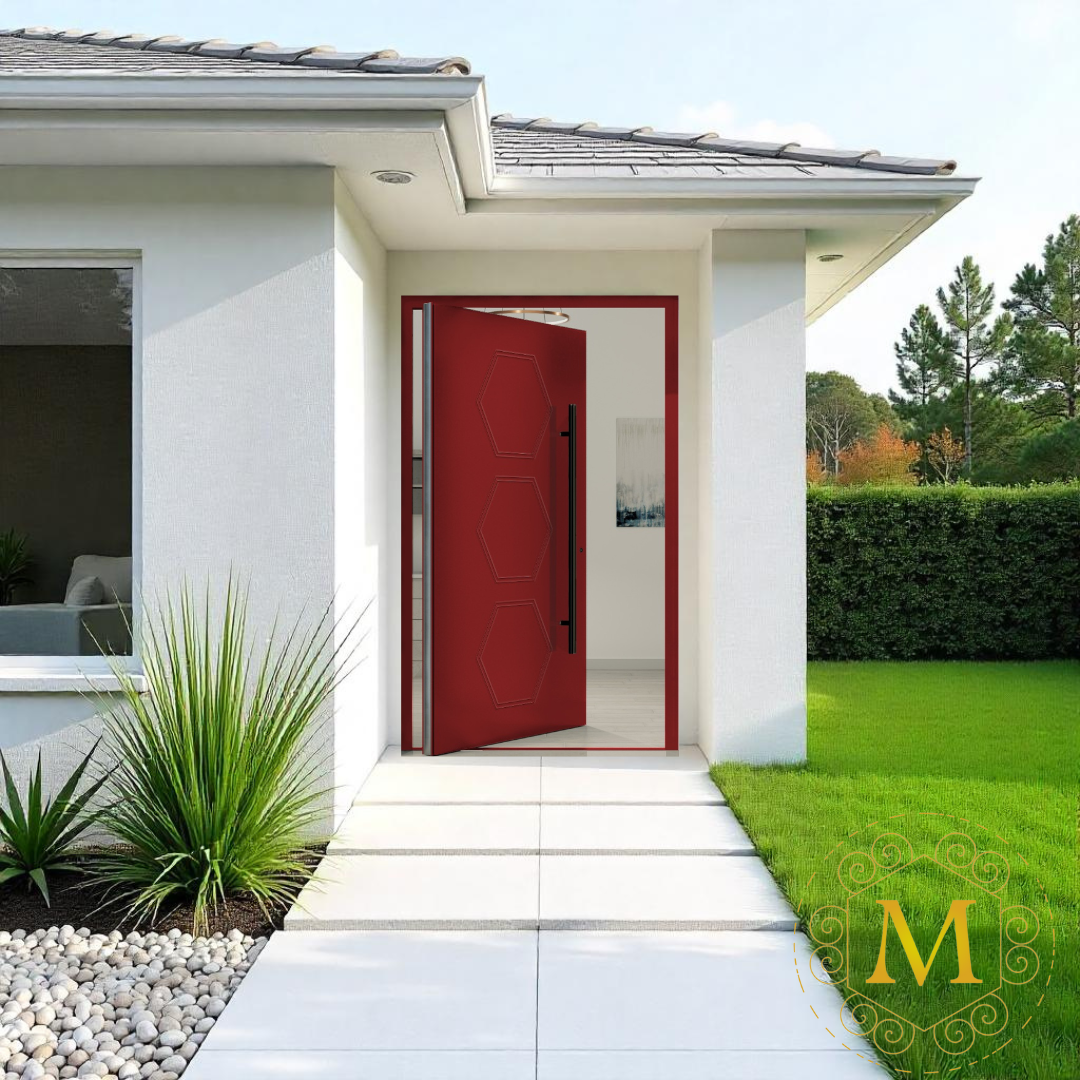

This aluminum pivot door (W: 55.1″–72″, H: 78.7″–116″) provides RC2 burglar resistance, thermal insulation (R-Value 5.5), and FUHR 833 3-point lock for security. It includes a low threshold design and a standard lock insert with 5 keys. Ideal for residential and commercial applications.
ORRE
$9,910.00
Production takes 7 weeks
ALUMINIUM COLLECTIONS PIVOT SINGLE PIVOT DOOR with sidelight
Open Configurator
Close
Woods
Colors
Wood color options are available upon request; however, please note that availability may vary depending on the specific model and size. Not all products in our catalog support wood textures due to design or material limitations.
If you are interested in a wood finish, we encourage you to contact us via email with the product name, size, and any preferred color or texture. Our team will be happy to check availability and assist you with customization options.
Your model: ORRE
y
x
y
x
x
y
x
y
x
x
Select all options in the configurator before adding the door to the cart
FREE SHIPPING!
Pivot Door Size (with Frame):
-
Width: 55.1″ to 72″
-
Height: 78.7″ to 116″
-
Available in smaller sizes (View LIM Basic)
Technical Specifications:
This aluminum pivot door combines security, energy efficiency, and performance. It is designed to withstand various environmental conditions, offering high airtightness and water resistance.
-
Air Tightness: Max. test pressure 4 (600 Pa)
-
Water Tightness: 4A (150 Pa)
-
Wind Load Resistance: C3 (1200 Pa)
-
Burglar Resistance: RC2/WK2 to safeguard against forced entry
-
Thermal Insulation: R-Value 5.5, ensuring excellent thermal performance
Included in the Set:
-
Aluminum pivot door and frame, crafted for strength and modern aesthetics
-
Door handle, designed for comfort and ease of use
-
FUHR 833 3-point lock for robust security
-
Low threshold door for smooth access and improved accessibility
-
Standard lock insert with 5 keys, ensuring peace of mind with added security
This pivot door is a high-performance solution for those seeking advanced security, efficient insulation, and a sleek, modern design for their residential or commercial spaces.
PIVOT Doors
Profile Construction
Made entirely from aluminum, PIVOT doors offer a unique and grand entrance with an offset pivot point. The profile is insulated with foam and coated with aluminum, ensuring thermal efficiency, durability, and a striking contemporary appearance ideal for large openings.
Technical Specifications & Set Inclusions
- Production & Delivery: Approximately 6 weeks for production + 1.5 weeks for delivery.
- Warranty: 5-year manufacturer warranty.
- Frame Size: The PIVOT door frame is 3 inches (approx. 76 mm) thick.
- Available Dimensions: PIVOT doors are typically made for custom, often oversized, dimensions to create a statement entrance.
- Locking System: The door set includes a multi-point lock system suitable for large-format doors.
- The door set includes:
- Aluminum door and door frame.
- High-quality door handle.
- Specialized pivot hinge system.
- Multi-point locking system.
- Threshold strip (detailed dimensions and pictures available).
- Standard lock insert with 5 keys.
Glazing
The glass in our doors features triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1.
- Standard Glazing Package: 4th/16Ar/4/16Ar/4th
- Safety Glass: VSG 33.1 // 4 // 4
- P4 Anti-burglary Glass
A wide range of glass options is available, including energy-saving, sound-absorbing, safety, anti-burglary, and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass, as well as bronze reflex glass.
- Light Permeability: Milk (Frosted) Glass: 89%; Mirror Glass: 68%; Graphite Reflex Glass: 42%.
Colours
PIVOT doors are available in a wide selection of colors from the RAL palette, allowing for full customization to complement the architectural vision.
Multipoint locking system Fuhr 835
Automatic multipoint locking system with a deadlocking latch.
Fuhr lock is the excellent locking system that guarantees comfort as well as security. The lock function ensures reliable, automatic locking and protection against uninvited guests. All you have to do is pull the door closed.
After closing the door, our three-point locking system protects against door warping, offering long-lasting seal tightness and a thermal efficiency.
The most important features:
Increased security – due to automatic locking there is no need for conventional locking with using a key.
Convenient opening – Effortless key operation thanks to two-stage opening sequence from the outside or using the lever handle from the inside.
Increased heat insulation – The multipoint locking system prevents the door from warping to ensure consistent seal tightness around the whole door leaf/slab.
Reliability and durability – long service life is guaranteed and has been tested with over 200,000 cycles.
Locking the lock:
- After closing the door, the latch in the main lock and additional bolts automatically lock the door.
- A single turn of the key causes the bolt of the main lock to be activated.
Unlocking the lock:
- Turning the key once withdraws both lock and bolts. Pressing the handle down causes the latch to be automatically released and allows to open the door.
| Type of door | Double door's, Single door |
|---|
