FUSION CLINTON

$3,320.00

Production takes 4 weeks

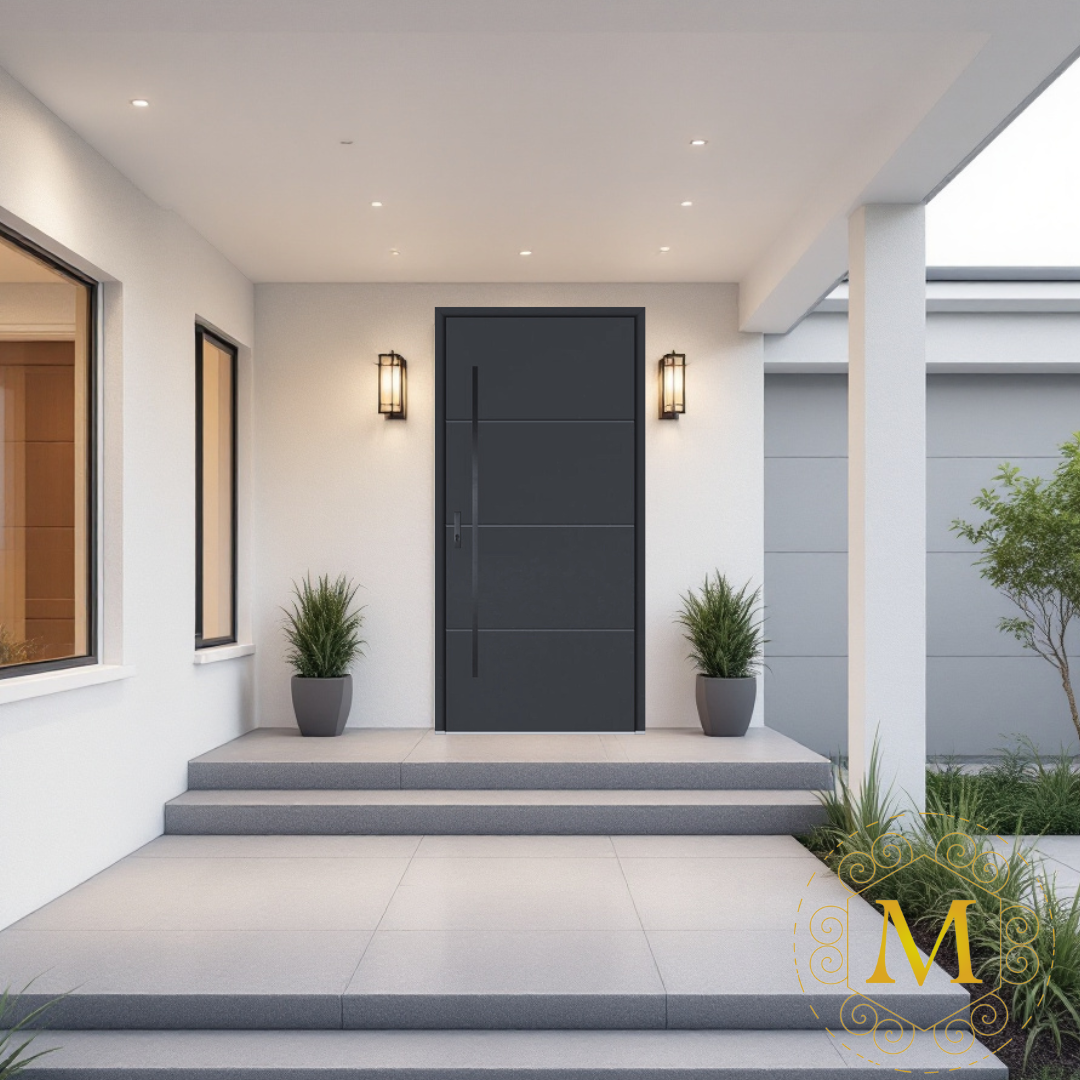

The CLINTON combines premium construction, advanced security features, and exceptional thermal and sound insulation. Its dual sealing system and multi-point locking mechanism offer protection against heat loss and intrusions, making it an ideal choice for residential and commercial applications.

F SINGLE STAINLESS DOOR FUSION STAINLESS STEEL DOOR'S COLLECTIONS with panels with sidelight
Open Configurator

Returning to the model selection will restart the remaining options. Do you want to continue?

Close

MODEL

LAYOUT

OPENING WAY

COLOR

DOOR HEIGHT
WITH  FRAME

DOOR WIDTH
WITH  FRAME

ACCESSORIES

HANDLES

Woods
Colors


Wood color options are available upon request; however, please note that availability may vary depending on the specific model and size. Not all products in our catalog support wood textures due to design or material limitations.
If you are interested in a wood finish, we encourage you to contact us via email with the product name, size, and any preferred color or texture. Our team will be happy to check availability and assist you with customization options.

Your model: FUSION CLINTON
y
x
handle
y
x
x
y
x
handle
y
x
x

Select all options in the configurator before adding the door to the cart

Product total
Options total
Grand total

FREE SHIPPING!

The CLINTON is engineered for maximum security, energy efficiency, and noise control. Crafted from high-quality stainless steel, this door features an interior core of PUR polyurethane foam and wood, with a robust 2.1-inch thick slab that ensures durability and superior thermal insulation.

Equipped with a dual sealing system, one seal is located in the frame’s dap, while another is positioned in the supporting part of the door slab. This configuration minimizes vibrations, reduces heat loss, and ensures the door maintains its structural integrity in varying atmospheric conditions. The frame is fortified with anti-burglar reinforcements at the hinge and locking points, offering enhanced protection against unauthorized access.

Included with the door set are two independent locks utilizing a multi-point locking mechanism for optimal security. The system also includes six adjustable hinges (three on each side), providing added anti-burglary protection. Additionally, three anti-theft bolts and an aluminum threshold with a gasket contribute to the door’s secure sealing and durability.

This model comes in several sizes, ranging from 34.5″ to 44.3″ in width and 82″ in height, with custom sizes available via the Lim or Pivot options. For those seeking extra security, this door features glazed options that include triple-glazed glass, ensuring excellent energy performance and noise reduction.

Thermally, the CLINTON boasts an R-Value of 5.7 for a solid door leaf and R-Value of 5.3 for a glazed door leaf, ensuring superior insulation. Additionally, the door offers 31 dB of acoustic insulation, making it perfect for environments that require quiet and energy-efficient solutions.

The CLINTON is prehung, which means it comes ready for installation, saving you time and effort during setup. Whether you’re securing your home or upgrading your commercial property, this door offers unparalleled security, energy efficiency, and soundproofing.

FUSION Doors

Profile Construction

The FUSION collection features a hybrid construction with a durable aluminum frame and a stainless steel door panel. The door is insulated with foam and wood and covered in a stainless steel sheet, combining modern aesthetics with robust performance.

Technical Specifications & Set Inclusions

  • Production & Delivery: Approximately 8 weeks for production + 1.5 weeks for delivery.
  • Warranty: 2-year manufacturer warranty.
  • Frame Size: The FUSION door frame is 78 mm thick.
  • Available Dimensions (Single Door with Frame):
    • Width: from 901mm to 1151mm
    • Height: from 2000mm to 2400mm
  • Locking System: The door set includes a multi-point lock system.
  • The door set includes:
    • Aluminum/Stainless steel door and door frame.
    • High-quality door handle.
    • Adjustable hinges.
    • Multi-point locking system.
    • Threshold strip (detailed dimensions and pictures available).
    • Standard lock insert with 5 keys.

Glazing

The glass in our doors features triple-pane windows. All panes are connected with spacer frames. Two of them are covered with Low-E coatings that provide natural light while helping to limit heat gain and thermal energy loss. It is also possible to choose P4 anti-burglary glass or safety glass VSG 33.1.

  • Standard Glazing Package: 4th/16Ar/4/16Ar/4th
  • Safety Glass: VSG 33.1 // 4 // 4
  • P4 Anti-burglary Glass

A wide range of glass options is available, including energy-saving, sound-absorbing, safety, anti-burglary, and sunscreen windows. The most popular ones are milk glass, decorative or mirror glass, as well as bronze reflex glass.

  • Light Permeability: Milk (Frosted) Glass: 89%; Mirror Glass: 68%; Graphite Reflex Glass: 42%.

Colours

The FUSION collection is available in a range of standard RAL colors:

  • Anthracite: RAL 7016
  • White structure: RAL 9003
  • Black matt: RAL 9005
  • Swamp oak: RAL 8028
  • Golden oak: RAL 8003
  • Bleached oak: RAL 1019
  • Winchester: RAL 8001
  • Anthracite: RAL 7015
  • Anthracite sapphire: RAL 7011
  • Silver gray: RAL 7040

Wala Hidden Hinges

We use Wala hidden hinges that combine high durability, numerous assembly advantages and a discreet, elegant form. Hinges are invisible when the door is closed. The 3D adjustment function provides a convenient way of adjusting the pressure, height and side adjustment (left/right) of the door. Hinges allow for trouble-free installation and removal of the door leaf/slab. Depending on the door height there are at least 3 hinges per door leaf/slab.

Roller hinges WR WALA

WR WALA are minimalistic, modern looking, high quality roller hinges. They have been tested and are certified by the German IFT ROSENHEIM. Hinges are protected by patent law and can be adjusted: vertically: -5 to 5mm / -0.2″ to 0.2″, gap: -2.5 to 2.5 mm / -0.1″ to 0.1″ , seal pressure: -1.5 to 1.5 mm / -0.05″ to 0.05″ . When it comes to finish they are available in stainless steel or any colour from the RAL palette (hinges will be painted in the same colour as the door). Depending on the door height there are at least 3 hinges per door leaf/slab.


Opening way:

Left hand – opening to inside, Left hand reverse – opening to outside, Right hand – opening to inside, Right hand reverse – opening to outside
Door height with frame:

80" +$110.00, 82.3", 82" +$112.00, custom height from 70.7" to 82.3" +$110.00
Glazing:

Graphite reflex, Milk frosted glass, Mirror glass, Standard ( transpared – clear glass )
Color:

Black + $110.00, Bleached oak + $110.00, Concrete + $110.00, Corten – architectural rust + $110.00, Dark anthracite RAL 7016, Double color ( doors in different colors inside and outside ), Golden oak, Light anthracite ( silver grey ) RAL 7040, Mahogany, Smooth anthracite RAL 7015, Turners oak, Walnut, Wenge, White, Winchester
Rain deflector:

No, Yes + $40.00
T-bar - long vertical handle or normal handle:

Only a normal door handle black + $70.00, Only a normal door handle silver, Yes, T-bar Straight, circular shape 47.2" black + $320.00, Yes, T-bar Straight, circular shape 47.2" silver + $270.00, Yes, T-bar Straight, rectangular shape 63" black + $320..00, Yes, T-bar Straight, rectangular shape 63" silver + $280.00
The color of the frame around the glass:

Black, Silver
